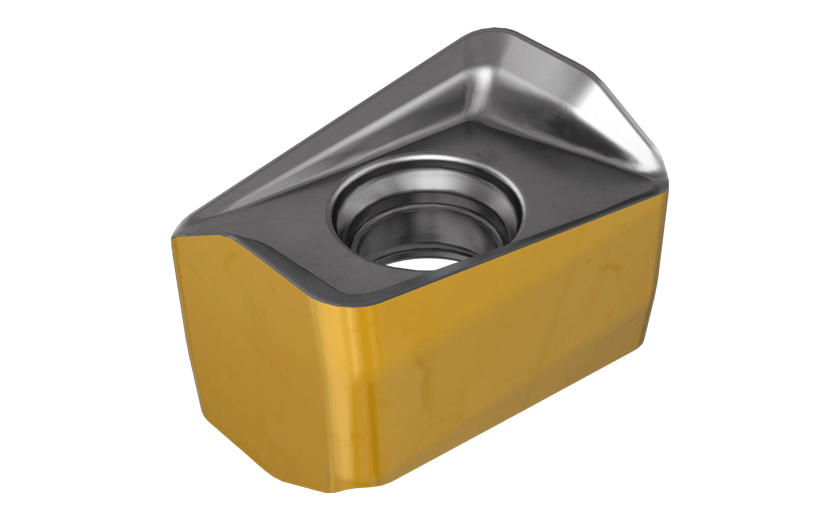

H490 ANKX/ANCX-17 :  Double-sided rectangular inserts with 4 helical cutting edges. Very strong construction, may be used for heavy applications. (HELIDO 490 line).


Counter boring Facing Shouldering Slotting
  Designation

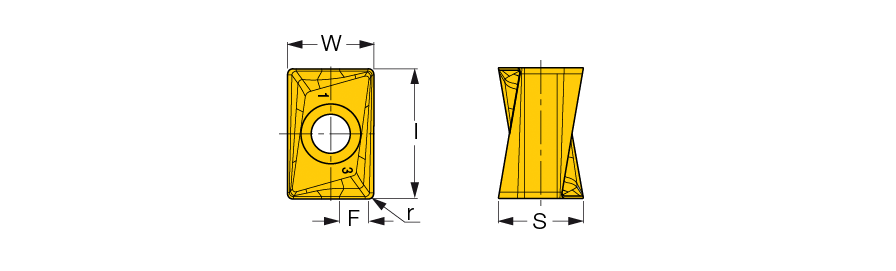

W
l
S
r
F		 fz
(min)		 fz
(max)
  Grade
  H490 ANCX 170608PDR  11.20  16.70  10.40  0.80  4.70  0.10  0.18 IC330 IC830 IC380 IC808 IC908 IC810 DT7150 IC5100
  H490 ANKX 1706PNTR-CS  11.20  16.70  10.40  0.80  4.70  0.15  0.22 IC830
  H490 ANKX 1706PNTR-RM  11.20  16.70  10.40  0.80  4.70  0.20  0.40 IC830 IC808
  H490 ANKX 170604PNTR  11.20  16.70  10.40  0.40  4.70  0.15  0.30 IC330 IC830
  H490 ANKX 170608PNTR  11.20  16.70  10.40  0.80  4.70  0.15  0.30 IC4400 IC330 IC328 IC830 IC928 IC5400 IC4050 IC380 IC808 IC908 IC810 IC910 DT7150 IC5100 IC4100
  H490 ANKX 170610PNTR  11.20  16.70  10.00  1.00  1.20  0.15  0.30 IC928
  H490 ANKX 170612PNTR  11.20  16.70  10.50  1.20  3.50  0.15  0.30 IC830 IC928 IC808
  H490 ANKX 170616PNTR  11.20  16.70  10.50  1.60  3.10  0.15  0.30 IC830 IC928 IC808
  H490 ANKX 170620PNTR  11.20  16.70  10.50  2.00  2.70  0.15  0.30 IC830 IC928 IC808
  H490 ANKX 170624PNTR  11.20  16.70  10.50  2.40  2.30  0.15  0.30 IC830 IC928 IC808

ANKX-utility inserts. ANCX-precision inserts.
