ADKW (PCD) :  A single corner R.H. PCD tipped milling insert, used for machining aluminum with excellent surface finish results. ID 5 for aluminum with up to 12% silicon and ID8 for higher silicon contents.


Facing Ramp down Shouldering Slotting

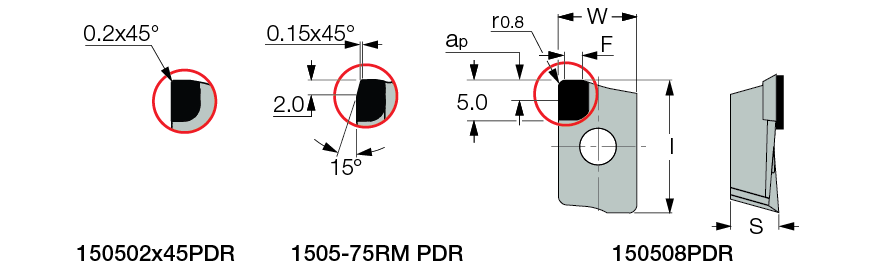

  Designation
W
l
S
ap
F		 fz
(min)		 fz
(max)
  Grade
  ADKW 1505-75RM PDR  9.60  16.18  5.83  2.00  2.00  0.10  0.25 ID5
  ADKW 150502X45 PDR  9.60  16.18  5.83  2.00  2.00  0.10  0.25 ID5
  ADKW 150508 PDR  9.60  16.18  5.83  2.00  1.52  0.10  0.25 ID8 ID5

This inserts are supplied with spare screws.
For D.O.C and cutting speed data, see More Info
