LNAR 1106 (PCD) :  TANGMILL tangentially clamped milling inserts with a positive rake brazed PCD tips, used for machining aluminum. ID 5 for aluminum with up to 12% silicon and ID8 for higher silicon contents.
 Single R.H. cutting edge PCD insert

Facing Shouldering Slotting

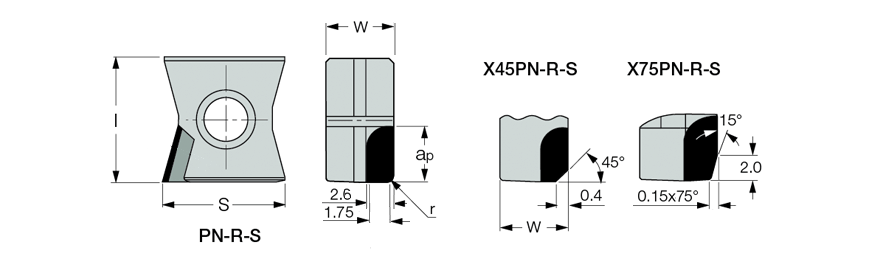

  Designation
W
l
S
r
Ch
a°
ap		 fz
(min)		 fz
(max)
  Grade
  LNAR 110604PN-R-S  6.00  11.11  10.76  0.40  -  90  5.00  0.10  0.25 ID8 ID5
  LNAR 110604X45PN-R-S  6.00  11.11  10.70  -  0.4  45  5.00  0.10  0.25 ID8 ID5
  LNAR 110620X75PN-R-S  6.00  11.11  10.72  -  0.15  75  5.00  0.10  0.25 ID8 ID5

The chamfered corner is used for reduced chipping on the machined component edges
For D.O.C. and cutting speed recommendations click on "More Info"
