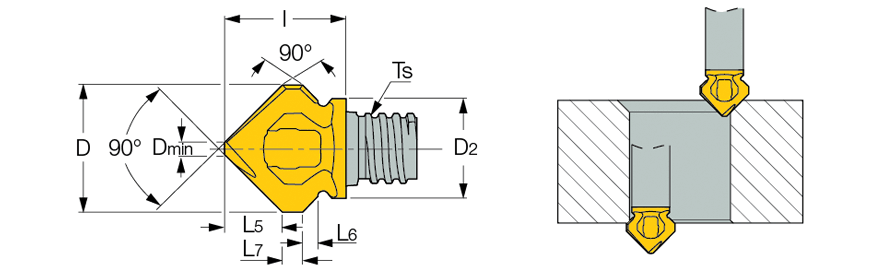

MM HDF :  MULTI-MASTER, 2 flute, interchangeable solid carbide heads. Used for upper and bottom chamfering.
 Economical solution

Countersinking Chamfering & bottom deburring
  Designation
D
Z
L5
L6
L7		 D
min
Ts
D2
l
  Grade
  MM HDF100-090-2T05  9.80  2  4.30  0.90  2.50  1.20  T05  7.60  10.80 IC908
  MM HDF120-090-2T06  11.80  2  5.30  1.20  2.00  1.20  T06  9.30  11.20 IC908
  MM HDF160-090-2T08  15.70  2  7.10  2.20  2.00  1.50  T08  11.50  14.00 IC908

For tightening torques and clamping instructions, click on "More Info"
Do not apply lubricant to the threaded connection
