IM63 XMZ-ASHR/L-3 :  Triple square shank tool adapters with ISO 26622-1 XMZ tapered shank for Mazak Integrex machines.

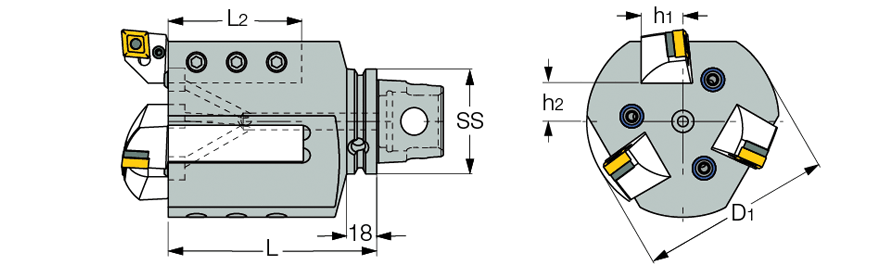

 Left-hand shown

HARDNESS 45 SURFACE FINISH N5 COOLANT
  Designation
SS
h1
D1
h2
L
L2
R/L
  IM63 XMZ ASHL 25-3  63  25.0  115.0  23.0  125.00  80.00  L
  IM63 XMZ ASHR 25-3  63  25.0  115.0  23.0  125.00  80.00  R

For shank standard details, click on "More Info"
