LNET 08 :  MINI-TANGSLOT Tangentially clamped inserts with 4 cutting edges for slotting and precision grooving cutters. The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface.


Side slotting Slitting Slotting

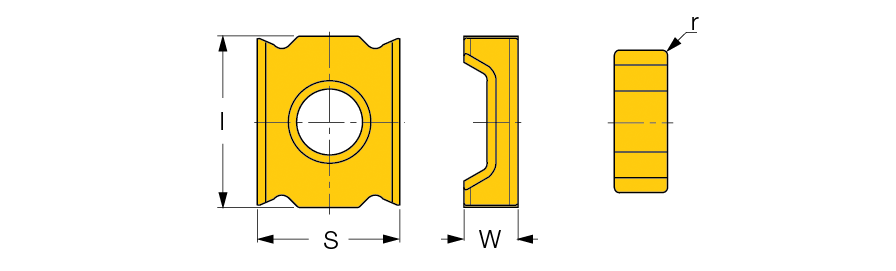

  Designation
S
W
r		 fz
(min)		 fz
(max)
  Grade
  LNET 082604-TN-N  6.85  2.60  0.40  0.08  0.08 IC928 IC910
  LNET 082804-TN-N  6.85  2.80  0.40  0.08  0.08 IC928

The insert has 2 right- and 2 left-hand cutting edges.
