RM-SEI-B :  Single-edged reaming inserts for general applications at high cutting speeds.


Blind & perpendicular hole Blind & radial groove Blind hole Stacked plates Through & axial groove Through & perpendicular holes Through & radial groove Through hole

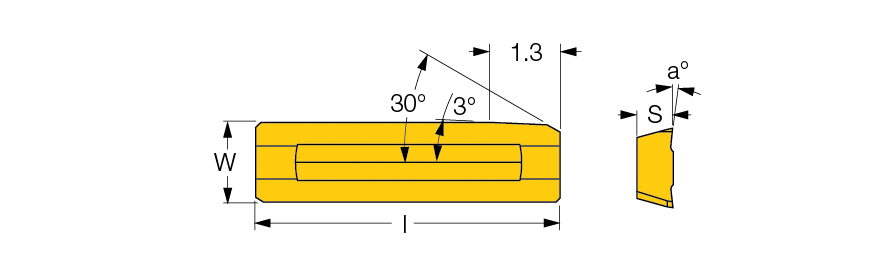

  Designation Po.
SizeInsert size
a°
l
W
S
L5
  Grade
  RM-SEI-3B-00  3.0  0  17.00  4.40  2.00  1.30 IC907
  RM-SEI-3B-06  3.0  6  17.00  4.40  2.00  1.30 IC507 IC907 IC20N
  RM-SEI-3B-12  3.0  12  17.00  4.40  2.00  1.30 IC07 IC907

Lead type of insert should be compatible with lead type of the tool
