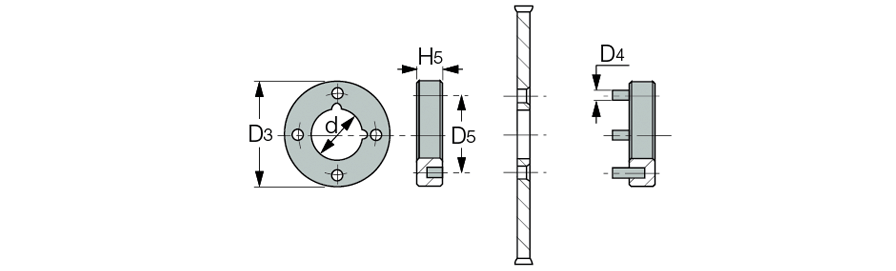

R (drive flange set) :  Drive Flange set for SELF-GRIP slitting cutters.


  Designation
d
D3
D5
D4
H5
CSI
  R 22-46  22.00  46.00  32.00  5.00  10.00  R 22-46
  R 32-55  32.00  55.00  45.00  6.00  10.00  R 32-55
  R 40-80  40.00  80.00  63.00  11.00  12.00  R 40-80
  R 50-110  50.00  110.00  80.00  14.00  14.00  R 50-110
