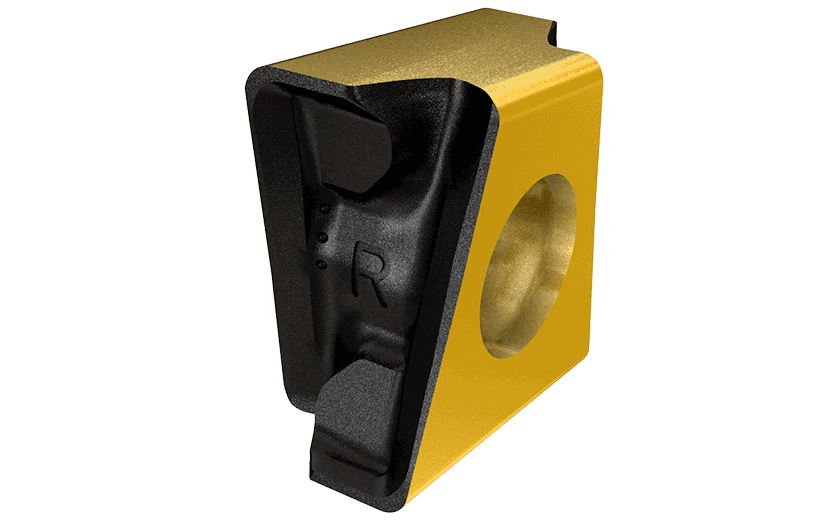

LNHT 1106 PN-N HT :  TANGMILL - Tangentially clamped inserts with straight, right-hand and left-hand cutting edges.


Bottom Shouldering   Shouldering Side slotting

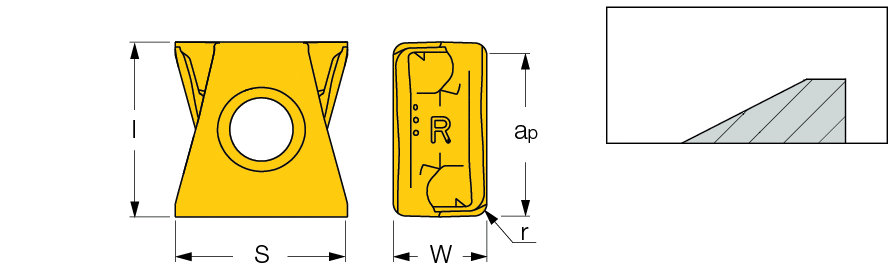

  Designation
W
l
S
r
apap max=10 mm for cast iron applications (for each pass), ap max=8 mm for steel applications		 fz
(min)		 fz
(max)
  Grade
  LNHT 1106PN-N HT  5.97  11.16  11.00  0.80  10.00  0.15  0.25 IC928 IC808 IC910

For mismatch as a function of cutting diameter, click on "More Info"
