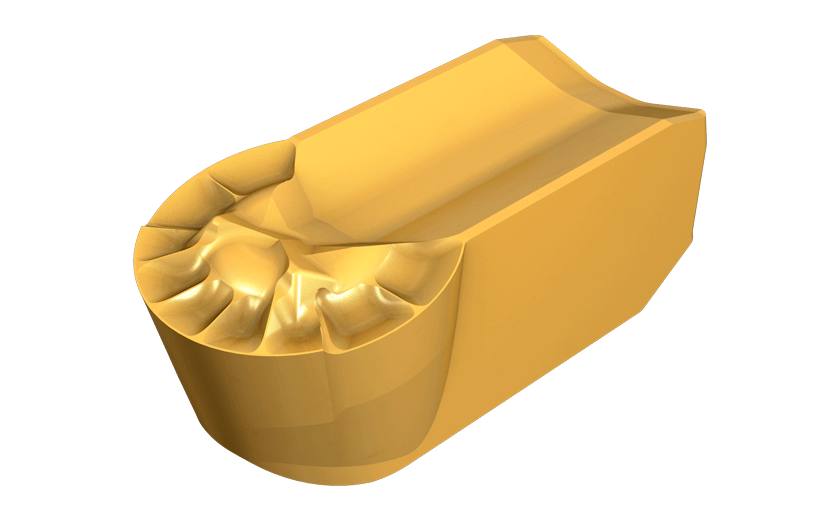

GIMY 1260 :  Utility single-ended inserts Y-type chipformers, used for deep external grooving and turning at low-to-medium feeds. The full-radius inserts can cut arcs to 250°.


Ext. Grooving Ext. Profiling Face Grooving Face Grooving & Turning
  Designation
W±0.05
R±0.05
M		 D1
min		 ap
(min)		 ap
(max)		 ft
(min)		 ft
(max)		 fg
(min)		 fg
(max)
  Grade
  GIMY 1260  12.00  6.00  9.5  160.0  0.00  6.00  0.42  0.86  0.26  0.45 IC830 IC635 IC8250 IC808 IC20
