ISCAR Cutting Tools - Metal Working Tools - Iscar Catalog : MM S-B (85° conical shanks)

Click on the application to view only its related inserts.
(If no application has been selected all related inserts will be displayed)

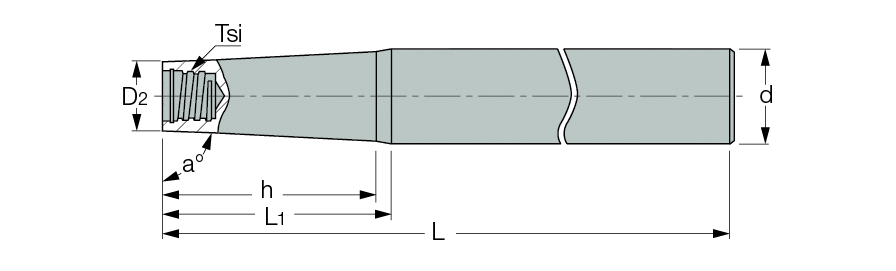

MM S-B (85° conical shanks) : MULTI-MASTER, 85° conical shanks for interchangeable milling heads.

Designation	Tsi	a°	d	D2	Shank	h	L1	L	Shank m.	Lbs
MM S-B-L5.50-C.625-T08	T08	85	.625	.480	C	.770	.870	5.500	S	.463

For adaptation click on "More Info"
Do not apply lubricant to the threaded connection.
Shank Material (Shank m.): S-steel,W-tungsten.
