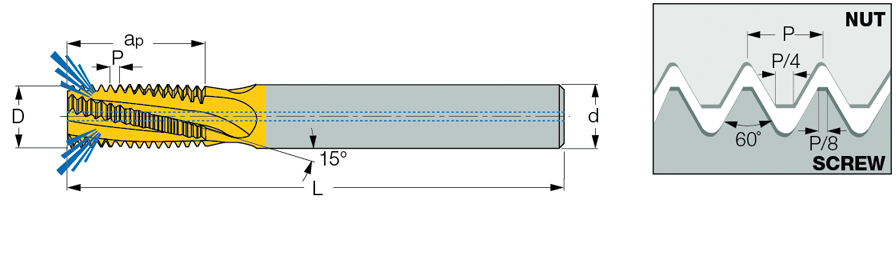

MTECZ-UN :  Solid carbide threading endmills with coolant holes located in the flutes, used for internal UN thread profile.
 Application: General engineering

Internal thread milling COOLANT
  Designation
TPI
UNC
UNF
UNEF
d
ShankC-Cylindrical
D
Flute
ap
L
  Grade
  MTECZ 1616E37 14UN  14.0  -  7/8  -  16.00  C  16.00  5  37.20  101.00 IC908
  MTECZ 16144D34 10UN  10.0  3/4  -  -  16.00  C  14.40  4  34.30  101.00 IC908
