DSD-EA :  Deep single tube drills with external 4 start thread connection, adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.


DEEPDRILL Drilling COOLANT

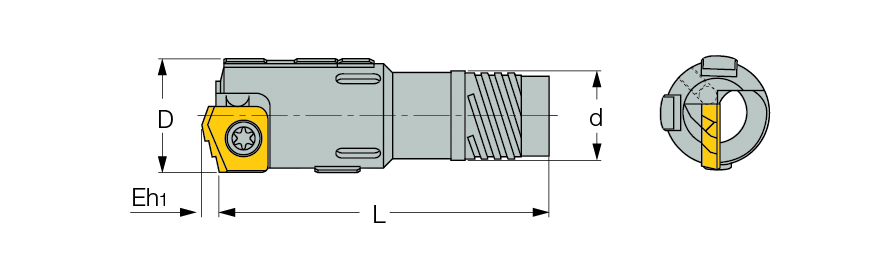

  Designation D
min		 D
max
L
d
Eh1
TsTube designation
  DSD-EA 16.01-16.70  16.01  16.70  62.00  12.60  3.1  TS-I0
  DSD-EA 16.71-17.70  16.71  17.70  62.00  13.60  3.1  TS-I1
  DSD-EA 17.71-18.90  17.71  18.90  62.00  14.50  3.1  TS-I2
  DSD-EA 18.91-20.00  18.91  20.00  62.00  15.50  3.3  TS-I3
  DSD-EA 20.01-21.80  20.01  21.80  69.00  16.00  3.3  TS-I4
  DSD-EA 21.81-24.10  21.81  24.10  69.00  18.00  3.6  TS-I5
  DSD-EA 24.11-26.40  24.11  26.40  72.50  19.50  3.6  TS-I6
  DSD-EA 26.41-28.50  26.41  28.50  72.50  21.00  3.8  TS-I7

For quotation form and user guide, click on "More Info".
