SCD-ACP-CS (20xD) :  Solid carbide drills with coolant holes. Drilling depth 20-22xD. Designed for automotive crankshaft applications.


Drilling COOLANT MQL

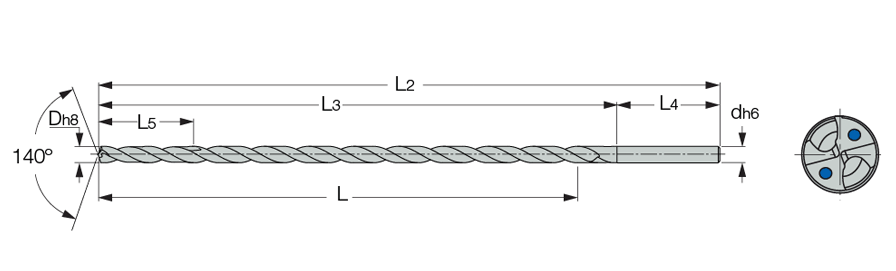

  Designation
D
L
L3
L2
d
Coolant
L4
L5Up to 50% of this length may be used to regrind
  Grade
  SCD 050-103-060ACP-CS  5.00  103.0  118.0  156.0  6.00  Y  38.0  40.00 IC908
  SCD 054-107-060ACP-CS  5.40  107.0  127.0  165.0  6.00  Y  38.0  40.00 IC908
  SCD 060-120-060ACP-CS  6.00  120.0  140.0  178.0  6.00  Y  38.0  40.00 IC908
