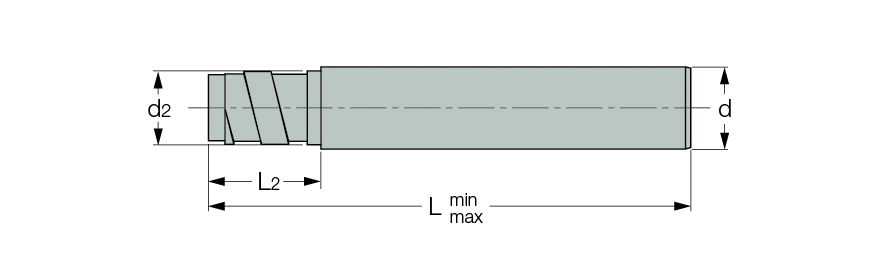

TS-O** :  Drill tubes - STS system - outer single start thread connection.




  Designation d
Range
d
d2
L2		 L
min		 L
max
  TS-O12 L=(0-1749)MM  1.181-1.259  1.024  .945  1.024  .00  68.86
  TS-O12 L=(1750-2600)MM  1.181-1.259  1.024  .945  1.024  68.90  102.36

Indicate overall length (L) when ordering.
Ordering example: TS-036-L1100 (43.307")
