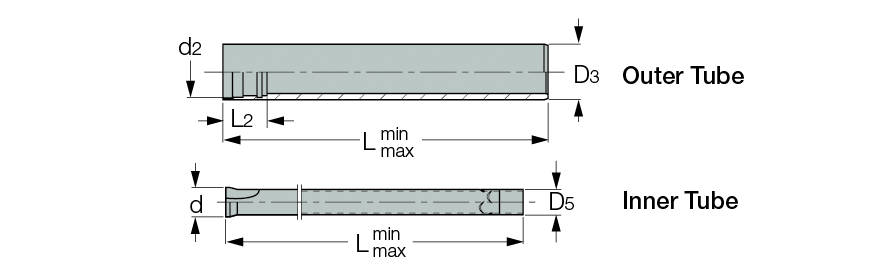

| TDO-I (D18.41-65.00) : Double-tube drill system (DTS), 4 start thread connection outer tubes. |
|
|
|
|
|
| Designation |
d
Range |
D3 |
d2 |
L2 |
Int
Tube |
d |
D5 |
L
min |
L
max |
|
TDO-I4 L=(0-630)MM
|
26.41-28.70 |
26.00 |
23.50 |
33.00 |
TDI-N4 |
18.00 |
16.00 |
0.0 |
630.0 |
|
TDO-I4 L=(631-1070)MM
|
26.41-28.70 |
26.00 |
23.50 |
33.00 |
TDI-N4 |
18.00 |
16.00 |
631.0 |
1070.0 |
|
Please indicate overall length (L) when ordering
Ordering example: TDO-I13-L1100
For 18.41-65.00 diameter range, the inner tube should be 30 mm longer than the outer tube
|
 |
    |
