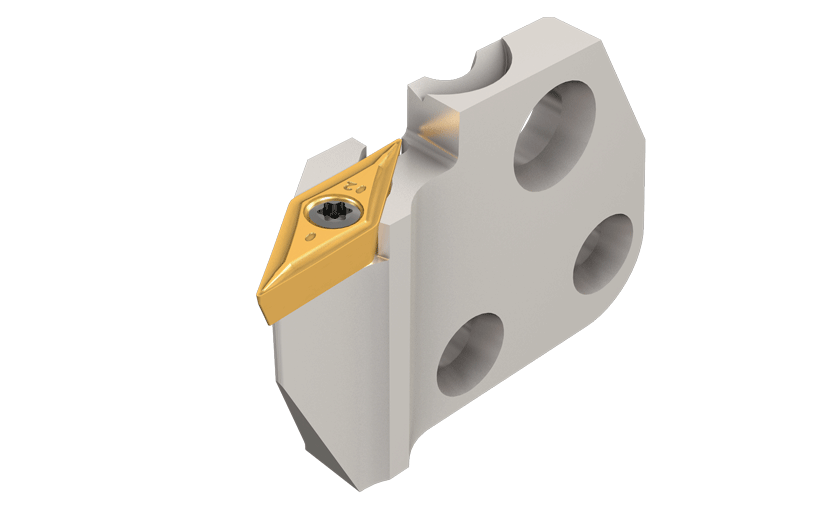

SVJCR-PAD :  93° Lead Angle Screw Lock Adapters for 35° Diamond Inserts with 7° Clearance Angle

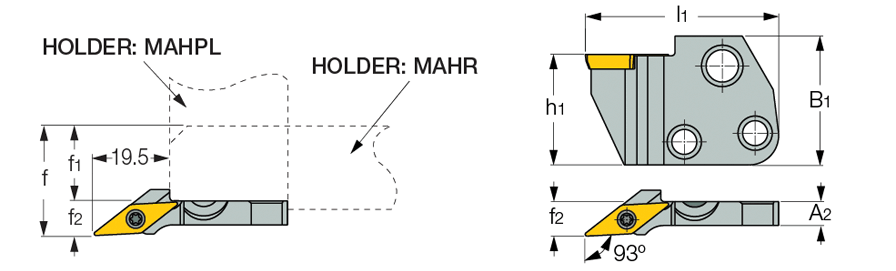

 f=f1(shank)+f2(adapter)
Ext. 35° diamond 93° approach
  Designation
h1
B1
l1
f2
A2
Ga°
Gr°
  SVJCR-11-PAD  24.0  28.0  42.00  7.50  5.2  0  0
