MM S-A (straight shanks) :  MULTI-MASTER, shanks for interchangeable milling heads. heads.

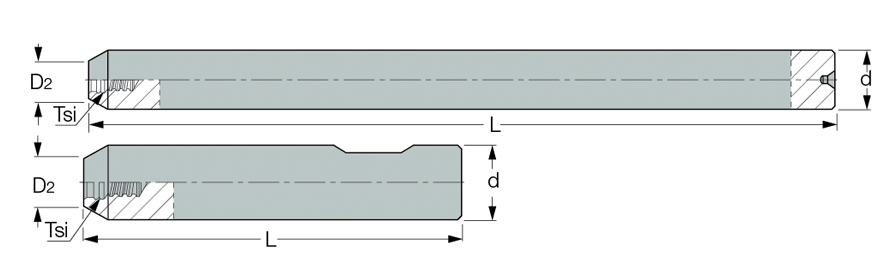

  Designation
Tsi
d
D2
ShankC-Cylindrical, W-Weldon
L		 Shank
m.
Kg
  MM S-A-L065-W16-T06  T06  16.00  9.50  W  65.00  S  0.11
  MM S-A-L200-C16-T06-B  T06  16.00  9.60  C  200.00  S  0.45

For adaptation click on "More Info"
Do not apply lubricant to the threaded connection.
Shank material (Shank m.) S-steel.
