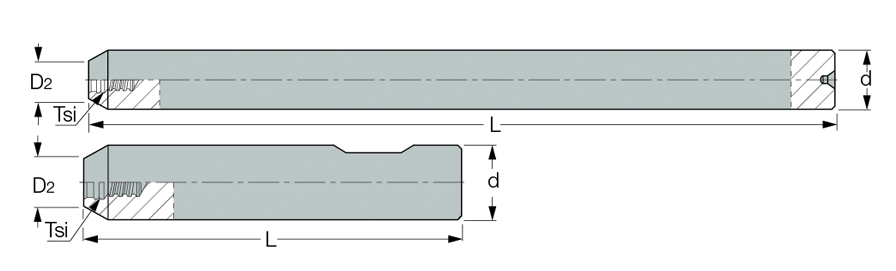

MM S-A (straight shanks) :  MULTI-MASTER, shanks for interchangeable milling heads.




  Designation
Tsi
d
D2
ShankC-Cylindrical, W-Weldon
L		 Shank
m.
Lbs
  MM S-A-L2.58-W.625-T08  T08  .625  .480  W  2.580  S  .198

For adaptation click on "More Info"
Do not apply lubricant to the threaded connection.
Shank material (Shank m.): S-steel, C-carbide
