HTP-LN10 :  TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.


Shouldering Side plunging COOLANT

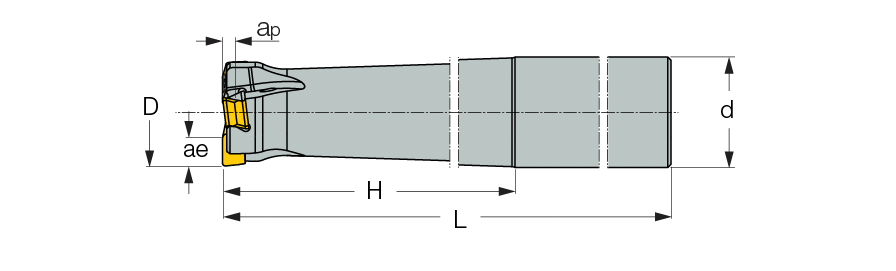

  Designation
D
ae
ap
Z
H
L
d
ShankC-Cylindrical, W-Weldon
Kg
  HTP D025-2-L200-C25-LN10  25.00  7.0  3.00  2  120.00  200.00  25.00  C  0.64
  HTP D032-3-L190-C25-LN10  32.00  8.0  3.00  3  50.00  190.00  25.00  C  0.68
  HTP D032-3-L210-C32-LN10  32.00  8.0  3.00  3  120.00  210.00  32.00  C  1.09
  HTP D032-3-L210-W32-LN10  32.00  8.0  3.00  3  120.00  210.00  32.00  W  1.09
  HTP D040-4-L250-C32-LN10  40.00  8.0  3.00  4  50.00  250.00  32.00  C  1.49

For adaptation, click on "More Info".
