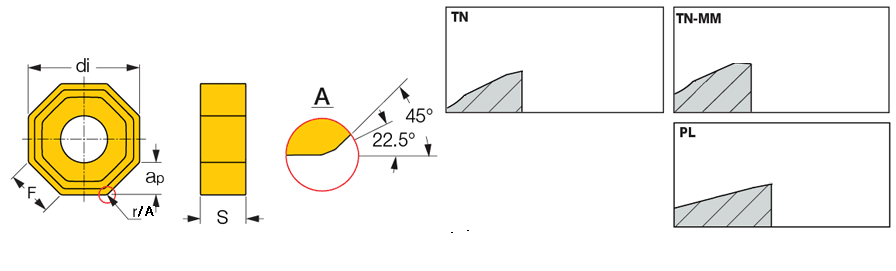

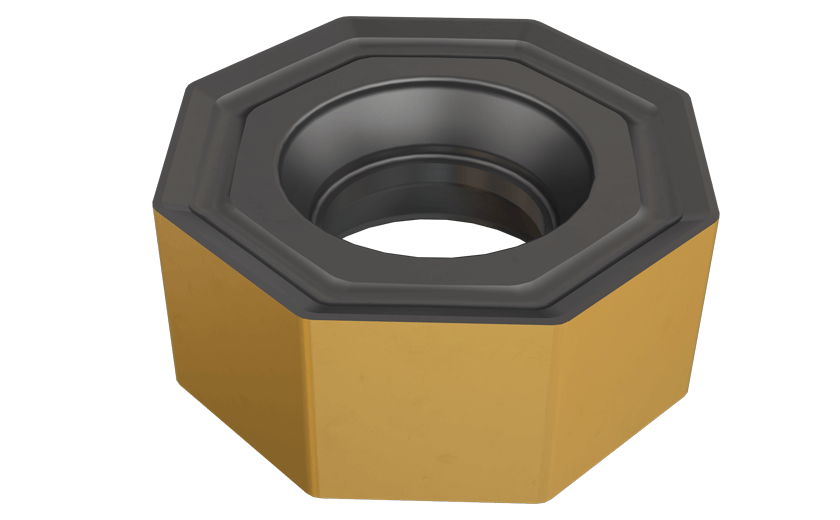

ONHU/ONMU-05 :  Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line).


Facing Slanted shoulder. & chamfer.
  Designation
F
di
ap
S
r
Ch		 fz
(min)		 fz
(max)
  Grade
  ONHU 050500-N-HP  4.50  13.00  3.50  5.20  -  ASee drawing  0.20  0.30 IC810
  ONHU 050500-PL  4.50  13.00  3.50  5.20  -  ASee drawing  0.15  0.20 IC330 IC830
  ONHU 050500-R-HP  4.50  13.00  3.50  5.20  -  ASee drawing  0.20  0.30 IC830
  ONHU 050505-TN  5.00  13.00  3.50  5.20  0.50  -  0.20  0.30 IC330 IC830 IC808 IC810
  ONHU 050505-TN-MM  5.00  13.00  3.50  5.20  0.50  -  0.25  0.40 IC330 IC830 IC808
  ONMU 050505-TN  5.00  13.00  3.50  5.20  0.50  -  0.30  0.40 IC810 DT7150 IC5100
  ONMU 050505-TN-MM  5.00  13.00  3.50  5.20  0.50  -  0.30  0.40 IC330 IC830 IC5400 IC4050 IC808

ONHU - Precision ground
ONMU - Utility
