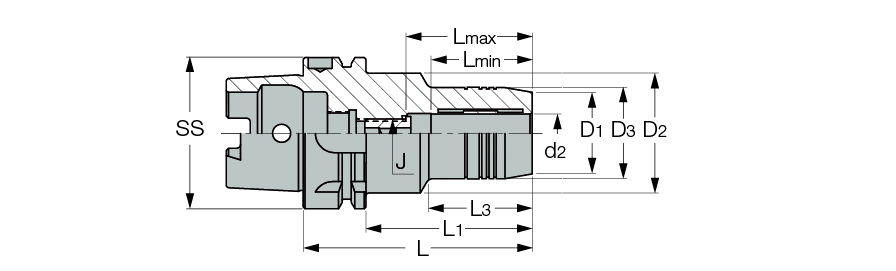

HSK A-HYDRO : Hydraulic chucks with HSK DIN69893 form A tapered shanks.

Designation	SS	d2	D1	D3	D2	L	L1	L3	L min	L max	J	Lbs
HSK A 50 HYDRO 1/4X3.150	50	.250	.906	1.024	1.654	3.150	2.126	1.299	.95	1.34	M5	1.544
HSK A 50 HYDRO 3/8X3.348	50	.375	1.063	1.181	1.654	3.346	2.323	1.535	1.26	1.65	M8x1	1.654
HSK A 50 HYDRO 1/2X3.425	50	.500	1.142	1.260	1.654	3.425	2.402	1.732	1.46	1.85	M10x1	1.764
HSK A 50 HYDRO 5/8X3.740	50	.625	1.339	1.496	1.654	3.740	2.717	2.047	1.65	2.05	M10x1	1.984
HSK A 50 HYDRO 3/4X3.937	50	.750	1.496	1.654	1.654	3.937	2.913	-	1.65	2.05	M16x1	2.426
HSK A 63 HYDRO 1/4X3.150	63	.250	.906	1.024	1.969	3.150	2.126	1.299	1.06	1.46	M5	2.315
HSK A 63 HYDRO 3/8X3.346	63	.375	1.063	1.181	1.969	3.346	2.323	1.535	1.26	1.65	M8x1	2.426
HSK A 63 HYDRO 1/2X3.543	63	.500	1.142	1.260	1.969	3.543	2.520	1.732	1.46	1.85	M10x1	2.536
HSK A 63 HYDRO 5/8X3.543	63	.625	1.339	1.496	1.969	3.543	2.520	2.047	1.65	2.05	M10x1	2.646
HSK A 63 HYDRO 3/4X3.602	63	.750	1.496	1.654	1.969	3.602	2.579	1.949	1.65	2.05	M16x1	2.866
HSK A 63 HYDRO 1X4.783	63	1.000	1.811	1.969	1.969	4.783	3.760	3.760	2.03	2.42	M16x1	3.969
HSK A 63 HYDRO 11/4X4.961	63	1.250	2.205	2.362	2.087	4.961	3.937	2.283	2.05	2.44	M16x1	4.851
HSK A 100 HYDRO 3/4X4.134	100	.750	1.496	1.654	2.480	4.134	2.992	2.126	1.65	2.05	M16x1	.000
HSK A 100 HYDRO 1X4.528	100	1.000	1.811	1.969	2.480	4.528	3.386	2.008	2.03	2.42	M16x1	.000
HSK A 100 HYDRO 11/4X4.72	100	1.250	2.205	2.362	2.480	4.724	3.583	2.323	2.05	2.44	M16x1	7.056

Chucking forces will significantly decrease if reduction sleeves are used (ordered separately).
A cooling tube must be used with coolant through HSK spindles (ordered separately).
Clamping wrench (wrench HYDRO HEX4) and test bar should be ordered separately.
Reduction sleeves are available for .75, and 1.25" bore diameters (must be ordered separately).
