FF EWX-05 :  HELIDO UPFEED endmills for fast feed, carrying double-sided Inserts with 6 cutting edges.


Profiling Plunging & recessing Side plunging Ramp down Helical interpolation Facing COOLANT
  Designation
D1
D		 ap
(max)
Z
L1
H
L
d
ShankC-Cylindrical, W-Weldon
Rd°

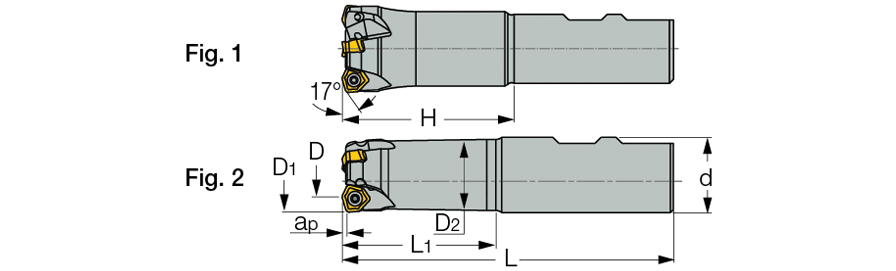

Fig.
Kg
  FF EWX D40-5-200-W40-05  40.0  30.00  1.00  5  200.0  203.00  275.00  40.00  W  2.8  2  2.17

apmax=1 mm; fzmax=1 mm/t; r=2.3 mm for programming
