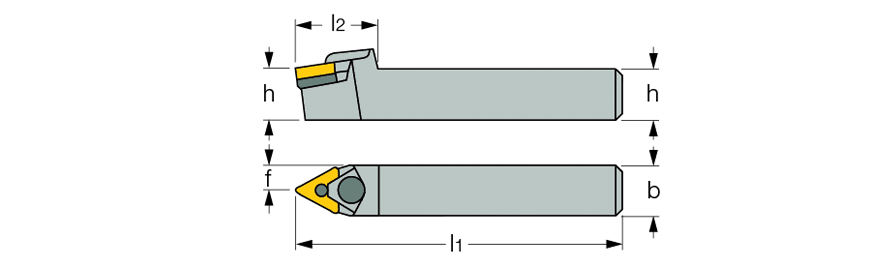

MTENN-W :  Neutral wedge lock toolholders for negative triangular inserts.


Ext. 60° triangle 60° approach
  Designation
h
b
l1
l2
f
Ga°
Gr°
  MTENN 1618H-16W-M  16.0  18.0  100.00  32.0  9.0  0  -8
  MTENN 2020K-16W-M  20.0  20.0  125.00  35.0  10.0  0  -8
  MTENN 2525M-16W-M  25.0  25.0  150.00  32.0  12.5  0  -8
  MTENN 2525M-22W  25.0  25.0  150.00  40.0  12.5  0  -8
  MTENN 3232P-22W  32.0  32.0  170.00  40.0  16.0  0  -8
