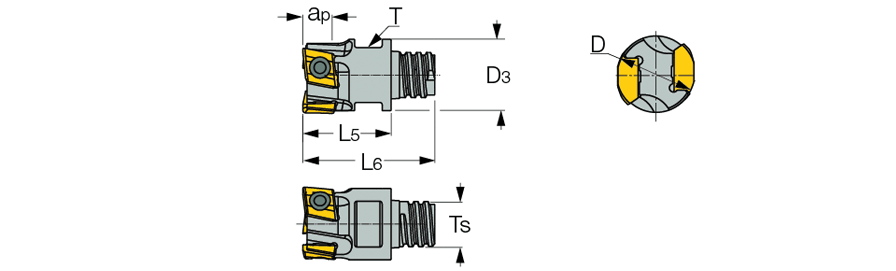

T290 ELN-MM-05 :  Endmills with tangentially clamped inserts and MULTI-MASTER adaptation.


Shouldering Slotting Counter boring Facing
  Designation
D
Z
ap
D3
Ts
L5
L6
TClamping wrench size
Kg
  T290 ELN D10-02-MMT06-05  10.00  2  5.00  9.20  T06  13.40  20.00  8.0  0.01
  T290 ELN D12-03-MMT08-05  12.00  3  5.00  11.00  T08  16.00  24.00  10.0  0.06
  T290 ELN D14-03-MMT08-05  14.00  3  5.00  13.00  T08  16.06  24.00  10.0  0.01
  T290 ELN D16-04-MMT10-05  16.00  4  5.00  14.95  T10  19.25  31.00  13.0  0.03
