TGSU :  Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. The blade features no upper jaw and a flat top, which allows for ZERO chip interference.


Ext. Grooving Parting

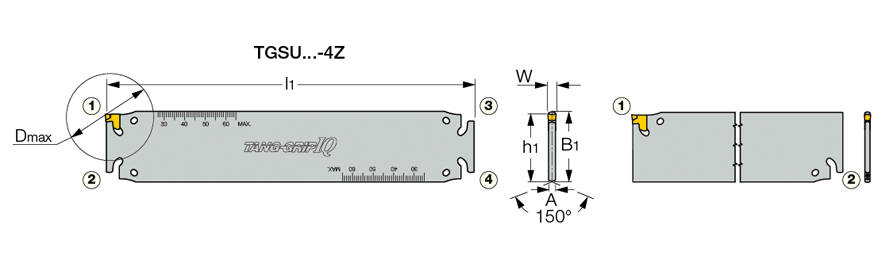

  Designation
B1		 W
min		 W
max
A
l1
h1		 D
max
  TGSU 35-6-IQ  35.0  5.70  6.50  5.20  180.00  33.2  144.0
