CNMM-M4PW :  The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications.


Ext. 80° diamond 95° approach Int. 80° diamond 95° approach

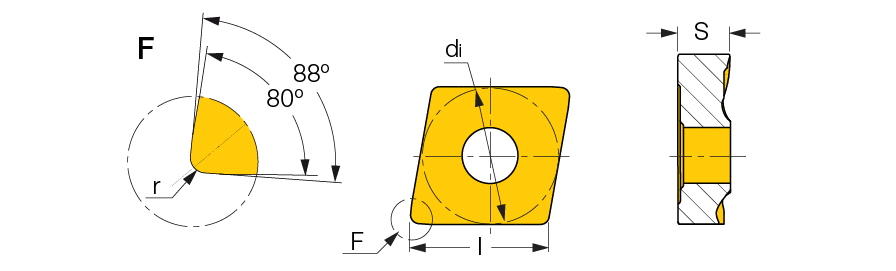

  Designation
di
S
r
l		 ft
(min)		 ft
(max)		 ap
(min)		 ap
(max)
  Grade
  CNMM 120408-M4PW  12.70  4.76  0.80  12.90  0.24  0.59  1.50  5.00 IC8250 IC8150
