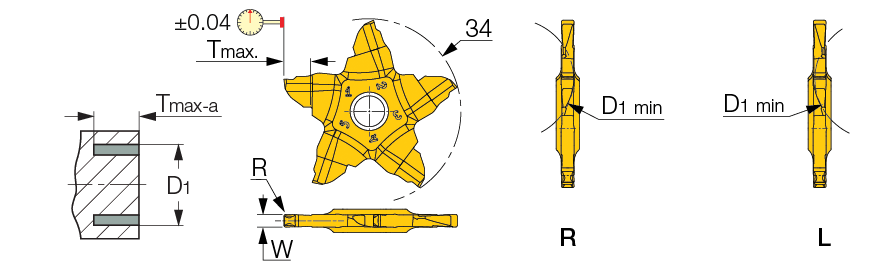

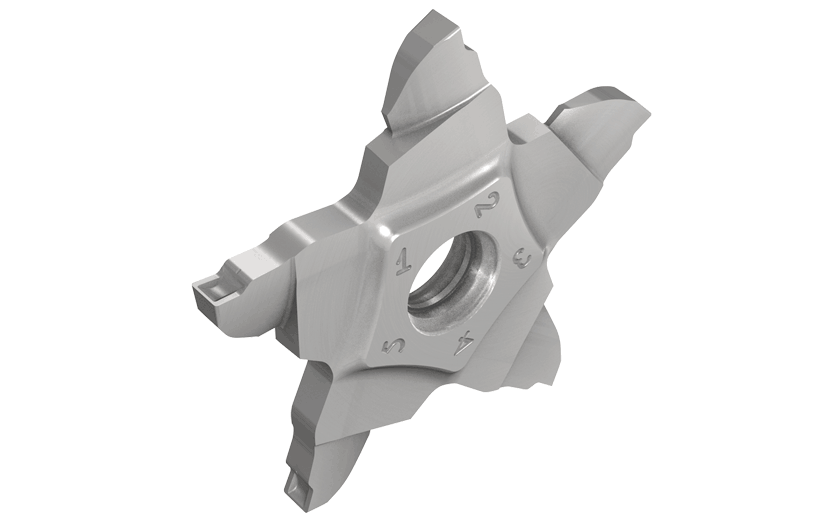

PENTA 34F-R/L : Pentagonal inserts for face grooving and recessing up to 5 mm depth of cut at a minimum 22 mm diameter.

Designation	W	R	Tmax-a	D1 min	ffg (min)	ffg (max)	Grade
PENTA 34F239-0.15-22L	2.39	0.15	5.00	22.0	0.08	0.12	IC908
PENTA 34F239-0.15-22R	2.39	0.15	5.00	22.0	0.08	0.12	IC908
PENTA 34F247-0.20-22L	2.47	0.20	5.00	22.0	0.08	0.12	IC908
PENTA 34F247-0.20-22R	2.47	0.20	5.00	22.0	0.08	0.12	IC908
PENTA 34F300-0.40-22L	3.00	0.40	5.00	22.0	0.08	0.15	IC908
PENTA 34F300-0.40-22R	3.00	0.40	5.00	22.0	0.08	0.15	IC908
PENTA 34F400-0.40-22L	4.00	0.40	5.00	22.0	0.08	0.15	IC908
PENTA 34F400-0.40-22R	4.00	0.40	5.00	22.0	0.08	0.15	IC908
