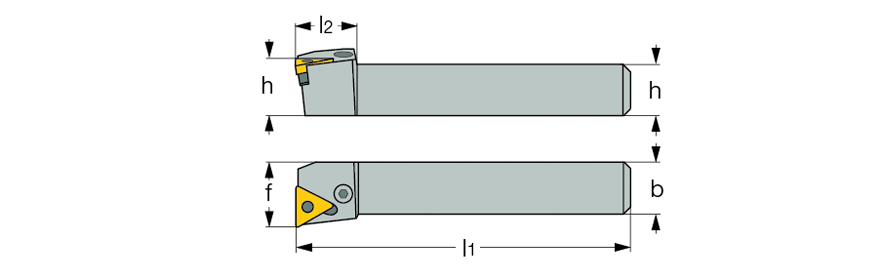

PTFNR/L :  91° lead angle lever lock face turning tools for negative triangular inserts.
 Right-hand shown

Ext. 60° triangle facing
  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  PTFNL 2020K-16  20.0  20.0  125.00  20.0  25.0  -6  -6  L
  PTFNR 2020K-16  20.0  20.0  125.00  20.0  25.0  -6  -6  R
  PTFNL 2525M-16  25.0  25.0  150.00  20.0  32.0  -6  -6  L
  PTFNR 2525M-16  25.0  25.0  150.00  20.0  32.0  -6  -6  R
  PTFNL 2525M-22  25.0  25.0  150.00  26.0  32.0  -6  -6  L
  PTFNR 2525M-22  25.0  25.0  150.00  26.0  32.0  -6  -6  R
