PICCO R/L 047 :  PICCOCUT inserts for internal deep profiling.

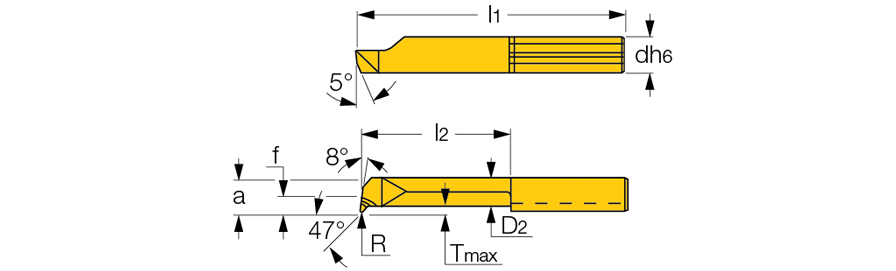

 Right-hand shown

Int. boring and profiling
  Designation
d
f
a
l1
l2
D2
Tmax		 D
min
R±0.05
  Grade
  PICCO L 047.4-20  4.00  1.5  3.50  34.00  20.0  3.00  0.30  4.00  0.15 IC908
  PICCO R 047.4-20  4.00  1.5  3.50  34.00  20.0  3.00  0.30  4.00  0.15 IC908
  PICCO L 047.5-25  5.00  1.9  4.40  40.00  25.0  3.80  0.50  5.00  0.15 IC908
  PICCO R 047.5-25  5.00  1.9  4.40  40.00  25.0  3.80  0.50  5.00  0.15 IC908
  PICCO L 047.6-30  6.00  2.3  5.30  45.00  30.0  4.50  0.50  6.00  0.15 IC908
  PICCO R 047.6-30  6.00  2.3  5.30  45.00  30.0  4.50  0.50  6.00  0.15 IC908

Left hand inserts on request.
