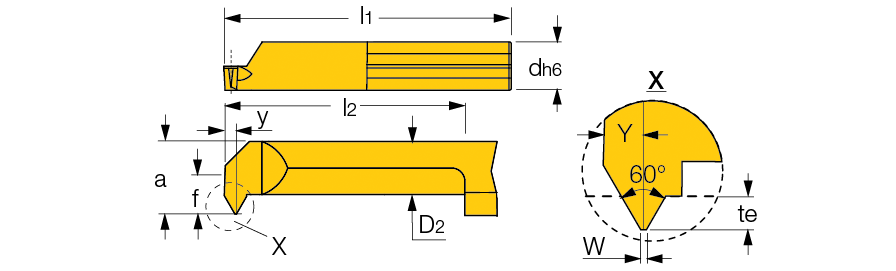

PICCO ISO Full Profile :
PICCOCUT inserts for ISO, standard full profile thread.
Right-hand shown
Designation
Pitch
d
f
a
l1
l2
D2
Y
te
w
D
min
R/L
Grade
PICCO L 105.0510-15
1.00
5.00
1.9
4.40
30.00
15.0
3.30
0.6
0.54
0.12
4.80
L
IC908
PICCO R 105.0510-15
1.00
5.00
1.9
4.40
30.00
15.0
3.30
0.6
0.54
0.12
4.80
R
IC908
PICCO L 106.0612-15
1.25
6.00
2.3
5.30
30.00
15.0
3.40
0.7
0.67
0.15
6.00
L
IC908
PICCO R 106.0612-15
1.25
6.00
2.3
5.30
30.00
15.0
3.40
0.7
0.67
0.15
6.00
R
IC908
PICCO L 106.0815-15
1.50
6.00
2.3
5.30
30.00
15.0
3.40
0.8
0.81
0.18
6.00
L
IC908
PICCO R 106.0815-15
1.50
6.00
2.3
5.30
30.00
15.0
3.40
0.8
0.81
0.18
6.00
R
IC908
PICCO L 107.0815-15
1.50
7.00
2.8
6.30
30.00
15.0
3.80
0.8
0.81
0.18
7.00
L
IC908
PICCO R 107.0815-15
1.50
7.00
2.8
6.30
30.00
15.0
3.80
0.8
0.81
0.18
7.00
R
IC908
Left-hand inserts on request
