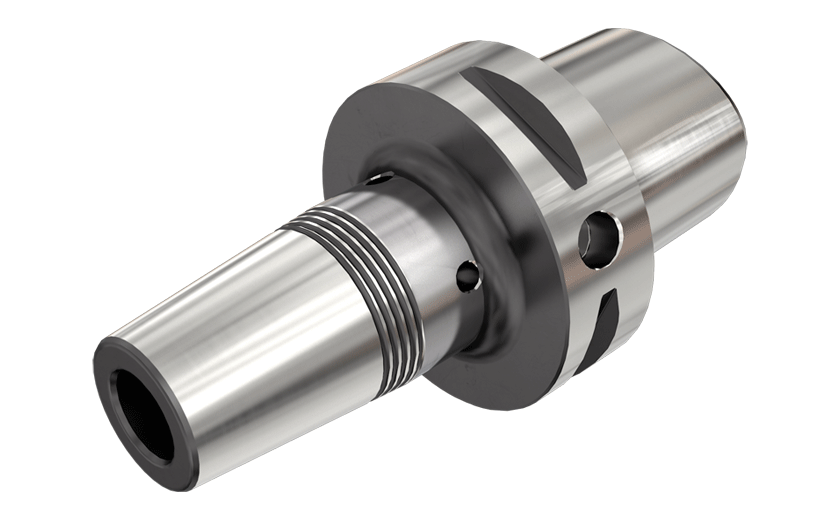

| C#-SRKIN : SHRINKIN thermal chucking collets with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. |
|
|
|
|
|
| Designation |
SS |
d2 |
D1 |
D2 |
L |
L1 |
L3 |
L
min |
L
max |
J |
Key |
Lbs |
|
C6 SRKIN 1 1/4X3.75
|
2.48 |
1.250 |
1.732 |
2.087 |
3.750 |
2.963 |
2.250 |
1.85 |
2.28 |
M16 |
8.000 |
5.292 |
|
Can be used for carbide and HSS tools.
The adjustment screw has an internal coolant hole.
Use only inductive heating devcie for SRKIN holders.
|
 |
    |
