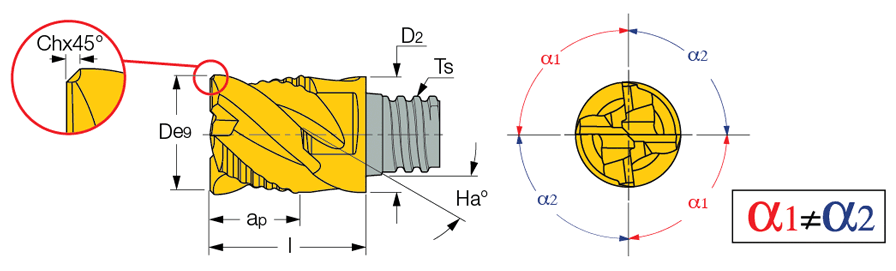

MM EFS-CF :  4 flute, 38° helix with variable pitch, interchangeable solid carbide heads. Used for chatter free roughing and finishing applications.


Shouldering Slotting Ramp down Helical interpolation
  Designation
D
Flute
ap
Ch
Ts
D2
l
Ha°		 fz
(min)		 fz
(max)
  Grade
  MM EFS100E07-4T06 CF  10.00  4  7.00  0.4  T06  9.60  13.00  38.0  0.03  0.09 IC908

For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.
