QNMG-PP :  Double-sided insert with four 80° corners, very positive rake, sharp- and positive-radial edge. For heat-resistant alloys, stainless steel, aluminum alloys, and soft, low carbon steel.


Ext. 80° Q#MG 95° approach Ext. 80° Q#MG 95°approach face Ext. 90°square face&turn 45°ap Int. 80° Q#MG 95° approach Int. 80° Q#MG 95°approach face

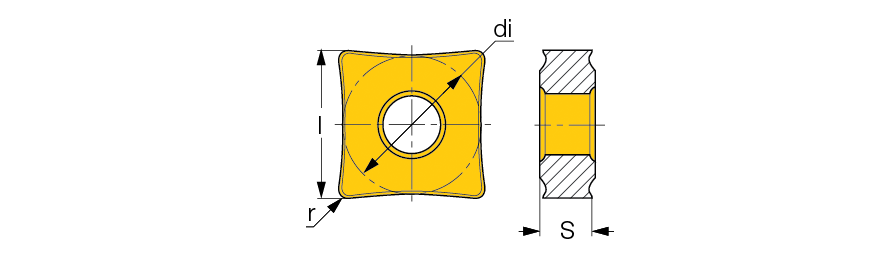

  Designation
l
di
S
r		 ft
(min)		 ft
(max)		 ap
(min)		 ap
(max)
  Grade
  QNMG 090408-PP  10.32  9.52  4.76  0.80  0.14  0.30  1.00  4.00 IC3028

For dimensions and tolerances, see more info.
