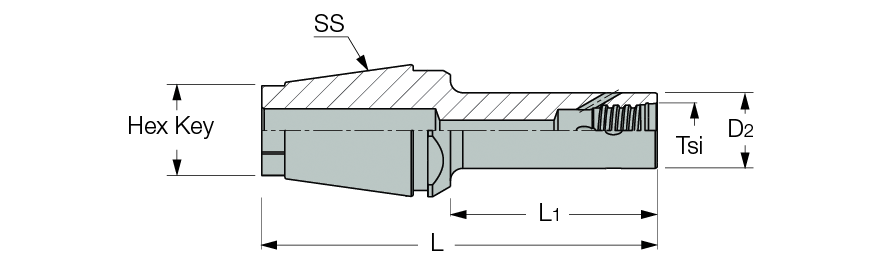

MM S-ER-H :  Shanks for MULTI-MASTER solid carbide heads with ER collet adaptation and coolant holes.




COOLANT
  Designation
SS
Tsi
D2
L1
L
Key
Lbs
  MM S-A-H025-ER32-T08-H  ER32  T08  .453  .984  2.740  .750  .441
  MM S-A-H050-ER32-T08-H  ER32  T08  .453  1.969  3.724  .750  .503

Do not apply lubricant to the threaded connection.
For adaptation click on "More Info".
