HTP-LN06 :  TANGPLUNGE, Side plungers carrying tangentially clamped inserts with 4 cutting edges. 5 mm side plunging capacity and 2.5 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.


Shouldering Side plunging COOLANT

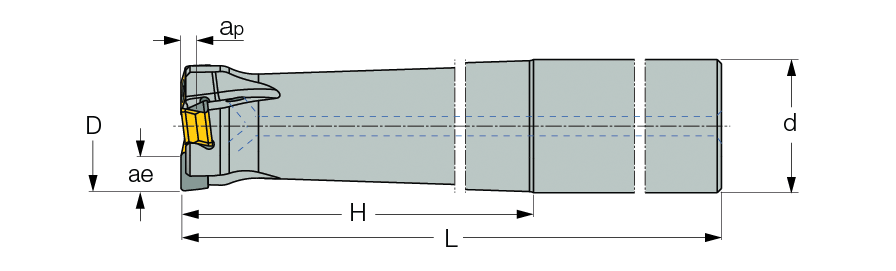

  Designation
D
ae
ap
Z
H
L
d
ShankC-Cylindrical
Kg
  HTP D016-2-L120-C16-LN06  16.00  4.5  2.50  2  32.00  120.00  16.00  C  0.17
  HTP D020-3-L150-C20-LN06  20.00  5.0  2.50  3  40.00  150.00  20.00  C  0.33
  HTP D025-3-L150-C25-LN06  25.00  5.0  2.50  3  50.00  150.00  25.00  C  0.51
  HTP D025-4-L130-C25-LN06  25.00  5.0  2.50  4  50.00  130.00  25.00  C  0.44

For adaptation, click on "More Info".
