SNMM-H4P :  Used for extra rough turning in the windmill and shipbuilding industries. Excellent performance on tower flange, main shaft and swing bearing for wind turbines made from low carbon steel.


Ext. 90° square 45° approach Ext. 90° square 75° approach Ext. 90°square face&turn 45°ap

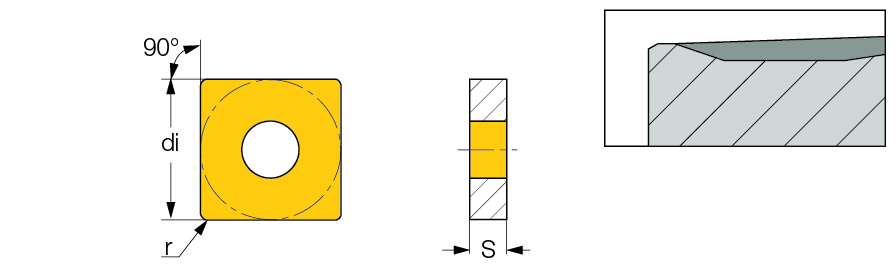

  Designation
di
r
S		 ft
(min)		 ft
(max)		 ap
(min)		 ap
(max)
  Grade
  SNMM 250924-H4P  25.40  2.40  9.52  0.55  1.50  5.00  15.00 IC8250 IC8150

For dimensions and tolerances, see more info.
