S890 FSN-13 :  HELIDO, Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 89° lead angle minimizes burrs and edge chipping for cast iron applications.


Facing Shouldering Profiling COOLANT
  Designation
D
D4
D5
D6
D7
Z
Da
ap
ap4
ap5
L
L4
L5
ArborFor adaptation click on More Info
Kg
  S890 FSN D040-04-16-R13  40.00  27.00  36.50  43.10  33.20  4  16.00  10.00  1.20  2.87  40.00  41.2  41.10  A  0.19
  S890 FSN D050-04-22-R13  50.00  37.00  46.50  53.10  43.20  4  22.00  10.00  1.20  2.87  40.00  41.2  41.10  A  0.28
  S890 FSN D050-05-22-R13  50.00  37.00  46.50  53.10  43.20  5  22.00  10.00  1.20  2.87  40.00  41.2  41.10  A  0.28
  S890 FSN D063-05-22-R13  63.00  50.00  59.50  66.10  56.20  5  22.00  10.00  1.20  2.87  40.00  41.2  41.10  A  0.40
  S890 FSN D063-05-25.4-R13  63.00  50.00  59.50  66.10  56.20  5  25.40  10.00  1.20  2.87  50.00  41.2  41.10  A  0.53
  S890 FSN D063-07-22-R13  63.00  50.00  59.50  66.10  56.20  7  22.00  10.00  1.20  2.87  40.00  41.2  41.10  B  0.39
  S890 FSN D080-07-25.4-R13  80.00  67.00  76.50  83.10  73.20  7  25.40  10.00  1.20  2.87  50.00  51.2  51.10  B  0.75
  S890 FSN D080-07-27-R13  80.00  67.00  76.50  83.10  73.20  7  27.00  10.00  1.20  2.87  50.00  51.2  51.10  B  0.74
  S890 FSN D080-09-27-R13  80.00  67.00  76.50  83.10  73.20  9  27.00  10.00  1.20  2.87  50.00  51.2  51.10  B  0.74
  S890 FSN D100-08-32-R13  100.00  87.00  96.50  103.10  93.20  8  32.00  10.00  1.20  2.87  50.00  51.2  51.10  B  1.26
  S890 FSN D100-11-32-R13  100.00  87.00  96.50  103.10  93.20  11  32.00  10.00  1.20  2.87  50.00  51.2  51.10  B  1.27
  S890 FSN D100-8-31.75-R13  100.00  87.00  96.50  103.10  93.20  8  31.75  10.00  1.20  2.87  50.00  51.2  51.10  B  1.30
  S890 FSN D125-09-38.1-R13  125.00  112.00  121.50  128.10  118.20  9  38.10  10.00  1.20  2.87  63.00  64.2  64.10  B  2.51
  S890 FSN D125-09-40-R13  125.00  112.00  121.50  128.10  118.20  9  40.00  10.00  1.20  2.87  63.00  64.2  64.10  B  2.31
  S890 FSN D125-14-40-R13  125.00  112.00  121.50  128.10  118.20  14  40.00  10.00  1.20  2.87  63.00  64.2  64.10  B  2.29
  S890 FSN D160-10-40-R13  160.00  147.00  156.50  159.60  153.20  10  40.00  10.00  1.20  2.87  63.00  64.2  64.10  C  4.49

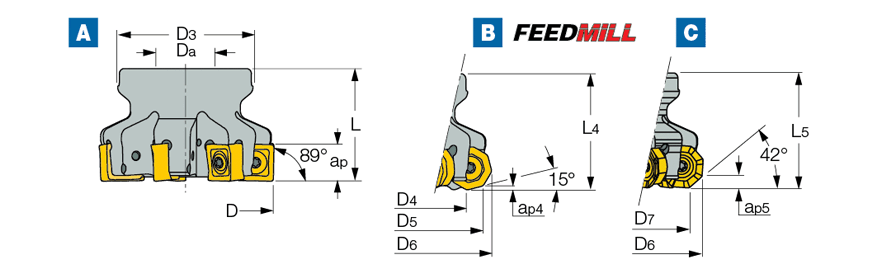

A- with S890 SNMU 1305... insert
B- with OXMT 0507R08-FF insert (the tools gain the FEEDMILL ability of machining at extremely high feeds - most effective for rough milling applications)
C- with OXMT 050705-R-HP insert
Use only Torx Plus keys
For adaptation click on "More Info"
