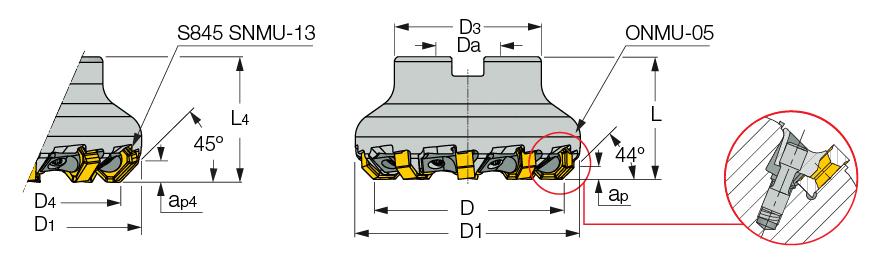

SOF45CL :  45° face mills, using square or octagonal double-sided inserts with 8/16 cutting edges.


Facing Slanted shoulder. & chamfer.
  Designation
D
D1
Z
L
ap
Da
D4
L4
ap4
ArborFor adaptation click on More Info
Kg
  SOF45CL 8/16 D050-07-22R  50.00  60.4  7  40.00  3.50  22.00  47.65  41.2  6.00  A  0.47
  SOF45CL 8/16 D063-10-22R  63.00  73.4  10  40.00  3.50  22.00  60.65  41.2  6.00  B  0.56
  SOF45CL 8/16 D080-12-27R  80.00  90.4  12  50.00  3.50  27.00  77.65  51.2  6.00  B  1.06
  SOF45CL 8/16 D100-16-32R  100.00  110.4  16  50.00  3.50  32.00  97.65  51.2  6.00  B  0.19
  SOF45CL 8/16 D125-20-40R  125.00  135.6  20  63.00  3.50  40.00  122.65  64.2  6.00  B  2.86
