LNAW-11 (CBN) :  TANGMILL inserts with a PCBN brazed tip. Use on F90LN milling cutters for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys.
 Single R.H. cutting edge insert

  Shouldering

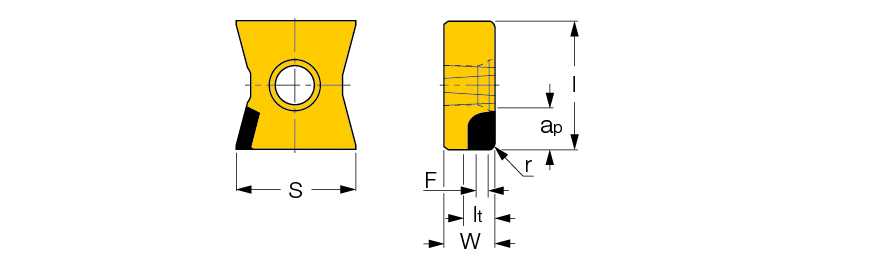

  Designation
W
S
r
l
ap
F
lt		 fz
(min)		 fz
(max)
  Grade
  LNAW 1106PNTR-S  6.00  11.80  0.80  11.17  5.00  1.20  2.8  0.10  0.25 IB85 IB55
  LNAW 1106PN-R-S  6.00  11.90  0.80  11.17  5.00  1.20  2.8  0.10  0.25 IB85

The LNAW PN-R.. is 0.03 mm edge-honed for finishing applications, while the LNAW PNTR... has a chamfered edge for rough milling applications
For D.O.C. and machining recommendations, click on "More Info"
