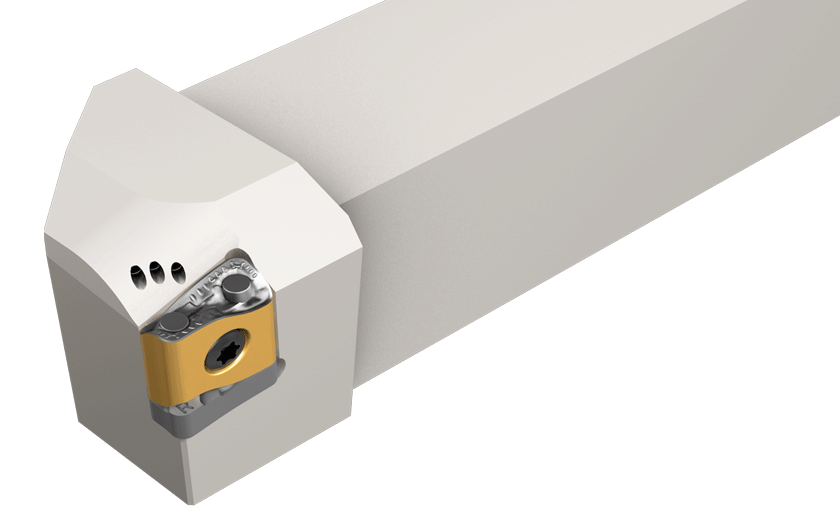

SLANR/L-15-TANG-JHP :  Screw clamped toolholders for LNMX tangentially clamped inserts with Channels for high pressure coolant. Recommended for heavy longitudinal and face turning.


Ext. tangential 93° approach 300 BAR (4350 PSI) MAX.

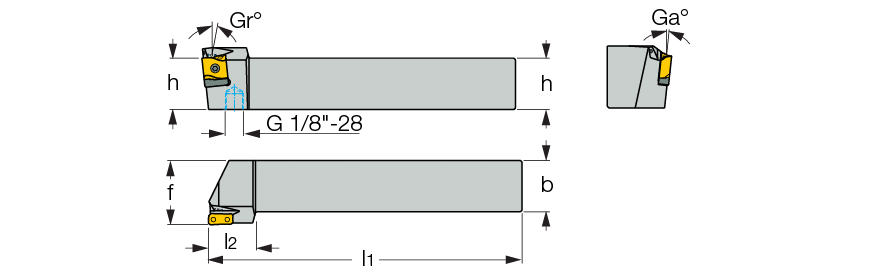

  Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
  SLANL 3232P-15 TANG-JHP  32.0  32.0  170.00  30.0  40.0  -6  -6  L
  SLANR 3232P-15 TANG-JHP  32.0  32.0  170.00  30.0  40.0  -6  -6  R

ap max for facing 3.8mm
