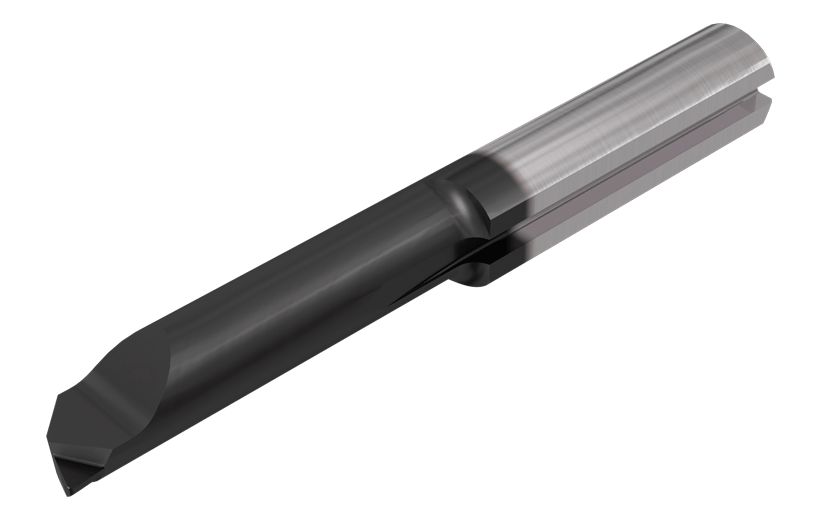

PICCO R 050.20 :  Inserts for internal turning and chamfering next to the bottom of blind holes
 Right-hand shown

Int. boring and profiling

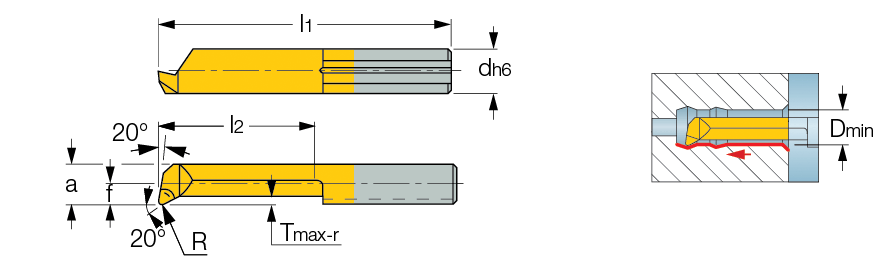

  Designation
d
f
a
l1
l2
R±0.05
Tmax-r		 D
min
  Grade
  PICCO R 050.20.2-10  4.00  -  1.70  24.00  10.0  0.05  0.10  2.00 IC908
  PICCO R 050.20.3-10  4.00  0.6  2.60  24.00  10.0  0.10  0.20  2.80 IC908
  PICCO R 050.20.4-16  4.00  1.5  3.50  30.00  16.0  0.10  0.30  4.00 IC908
  PICCO R 050.20.5-20  5.00  1.9  4.40  35.00  19.0  0.15  0.50  5.00 IC908
