SVJCR/L-16-JHP :  93° lead angle, screw lock toolholders for 35° diamond inserts with 7° clearance angle and channels for high pressure coolant.


Ext. 35° diamond 93° approach 300 BAR (4350 PSI) MAX.

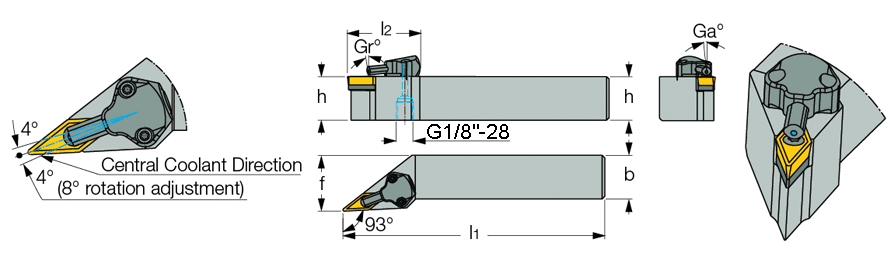

  Designation
h
b
l1
l2
f
Ga°
Gr°
  SVJCL 2525M-16-JHP  25.0  25.0  150.00  42.0  32.0  0  0
  SVJCR 2525M-16-JHP  25.0  25.0  150.00  42.0  32.0  0  0
