EFP-E4,5CF :  4, 5 flute 38° helix, solid carbide roughing endmills with chip splitting cutting edges, variable pitch (CHATTERFREE) and large radius frontal edge for high feed rates (FEEDMILL).


Shouldering Slotting Ramp down Helical interpolation Profiling Plunging & recessing

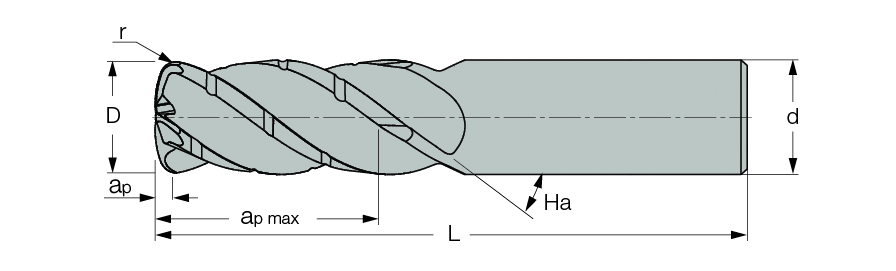

  Designation
D
d
L
rUsed for programming
Flute
Ha°
apMaximum D.O.C. for high feed milling (FEEDMILL)		 ap
max
Rd°		 fz
(min)		 fz
(max)
  Grade
  EFP-E4CF 06-12C06R1.0M57  6.00  6.00  57.00  1.00  4  38.0  0.30  12.00  5.0  0.02  0.30 IC903
