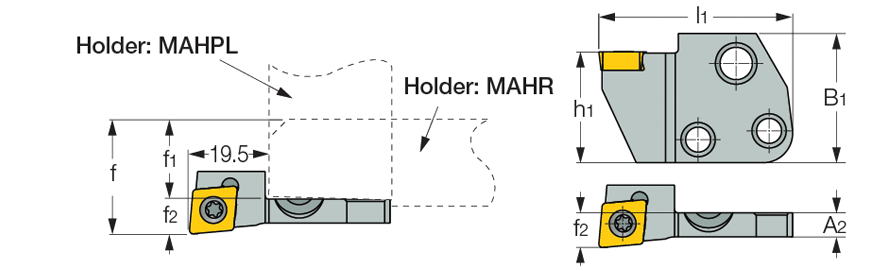

SCLCR-PAD :  Screw lock adapter for 80° diamond inserts with 7° clearance angle

 f=f1 (shank)+f2 (adapter)
Ext. 80° diamond 95° approach
  Designation
l1
f2
A2
Ga°
Gr°
R/L
  SCLCR-09-PAD  42.00  7.50  5.2  0  0  R
