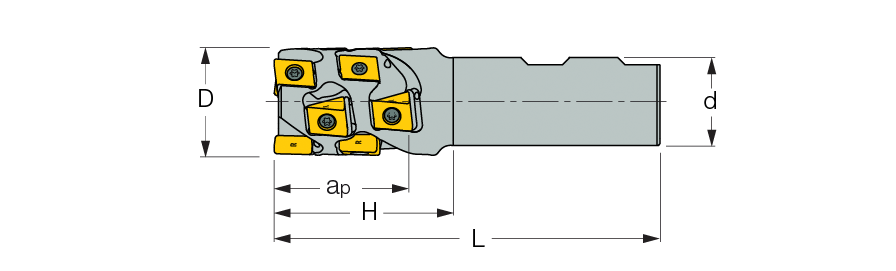

T490 LNK-16 :  Extended flute endmills using T490 LNMT/LNHT 16... tangentially clamped inserts with 4 helical, 16 mm long cutting edges (HELITANG T490 Line).


Shouldering COOLANT
  Designation
D
ap
Flute
Z
H
L
d
ShankC-Cylindrical, W-Weldon
Kg
  T490 LNK D50-62-3-W40-16  50.00  62.00  3  12  76.00  150.00  40.00  W  1.37

aemax for regular inserts, up to 0.25xD. aemax for -CS (chip splitting) inserts, up to 0.35xD.
