MAHPR/L-JHP :  Holders with high pressure coolant channels for MODULAR GRIP perpendicularly mounted adapters.

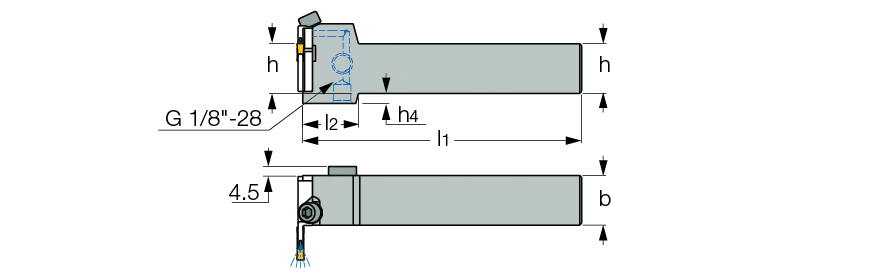

 Right-hand shown

340 BAR (4900 PSI) MAX.
  Designation
h
b
l1
l2
h4
  MAHPL 20-JHP  20.0  20.0  140.00  28.0  10.0
  MAHPR 20-JHP  20.0  20.0  140.00  28.0  10.0
  MAHPL 25-JHP  25.0  25.0  140.00  28.0  5.0
  MAHPR 25-JHP  25.0  25.0  140.00  28.0  5.0
  MAHPL 32-JHP  32.0  32.0  150.00  28.0  -
  MAHPR 32-JHP  32.0  32.0  150.00  28.0  -
