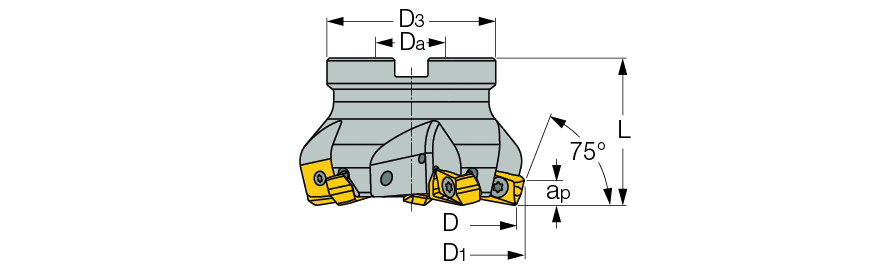

H490 F75AX :  HELIDO, 75° face mills with H490 ANKX 17... inserts. The tool can use the otherwise unused insert corners from the H490 90° tools.


Facing Slanted shoulder. & chamfer. COOLANT
  Designation
D
D1
Z
ap
L
Da
ArborFor adaptation click on More Info
D3
Kg
  H490 F75AX D080-5-27-17  80.00  84.5  5  8.00  55.00  27.00  B  63.00  1.07
