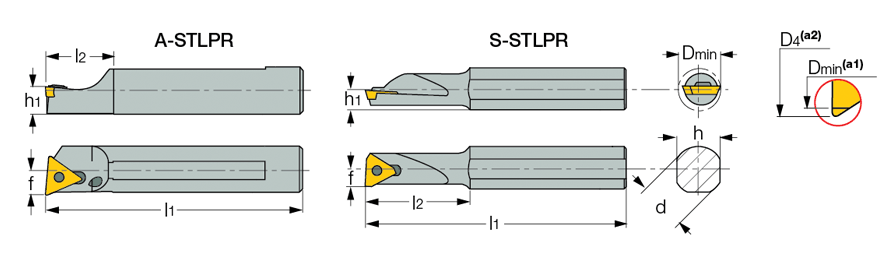

| A/S-STLPR/L : Screw lock boring bars for triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole. |
|
|
|
|
|
| Designation |
d |
l1 |
l2 |
h |
h1 |
f |
Ga° |
Gr° |
D
min |
D4 |
Coolant |
R/L |
|
S20R STLPR-16
|
20.00 |
200.00 |
63.0 |
18.0 |
10.0 |
10.2 |
5 |
0 |
21.50 |
21.50 |
- |
R |
|
|
(a1) When used with insert TPG. 110204-XL (a2) When used with insert TP.. 110204-..
|
 |
    |
