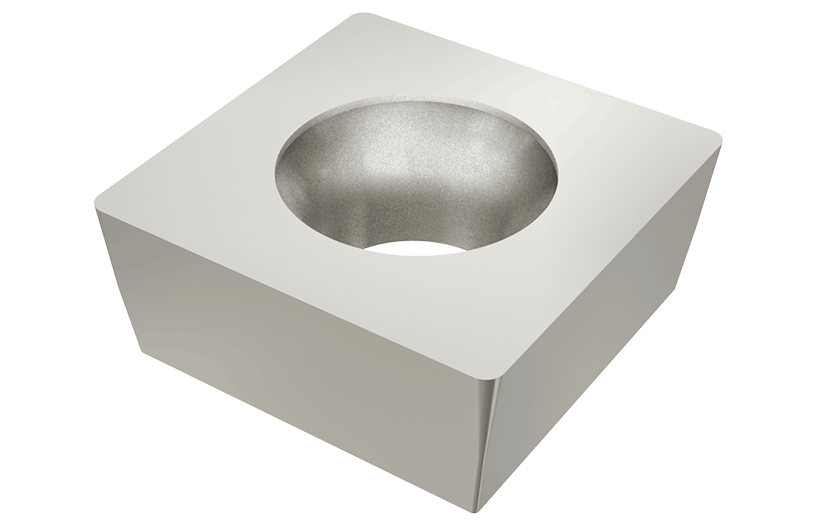

SCMW :  Square 7° positive flank, flat rake inserts, for short chipping materials.


Ext. 90° square 45° approach Ext. 90° square 75° approach Ext. 90°square face&turn 45°ap Slanted shoulder. & chamfer. Chamfering & bottom deburring Countersinking

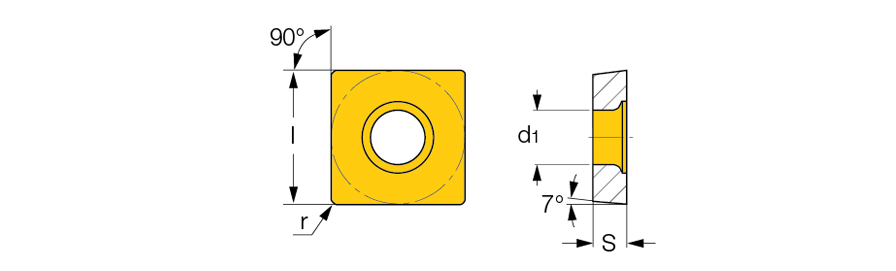

  Designation
l
S
r
d1
  Grade
  SCMW 09T304  9.52  3.97  0.40  4.40 IC20
  SCMW 120408  12.70  4.76  0.80  5.50 IC20

For dimensions and tolerances click on "More Info".
